Balun Transformer WTBL Series

For the latest version of the specifications, please refer to the website of Huaxin Technology. The information on the website is only for customer reference. If you need detailed information or ask for other specifications, please write to us and we will have dedicated service.

Download Specifications

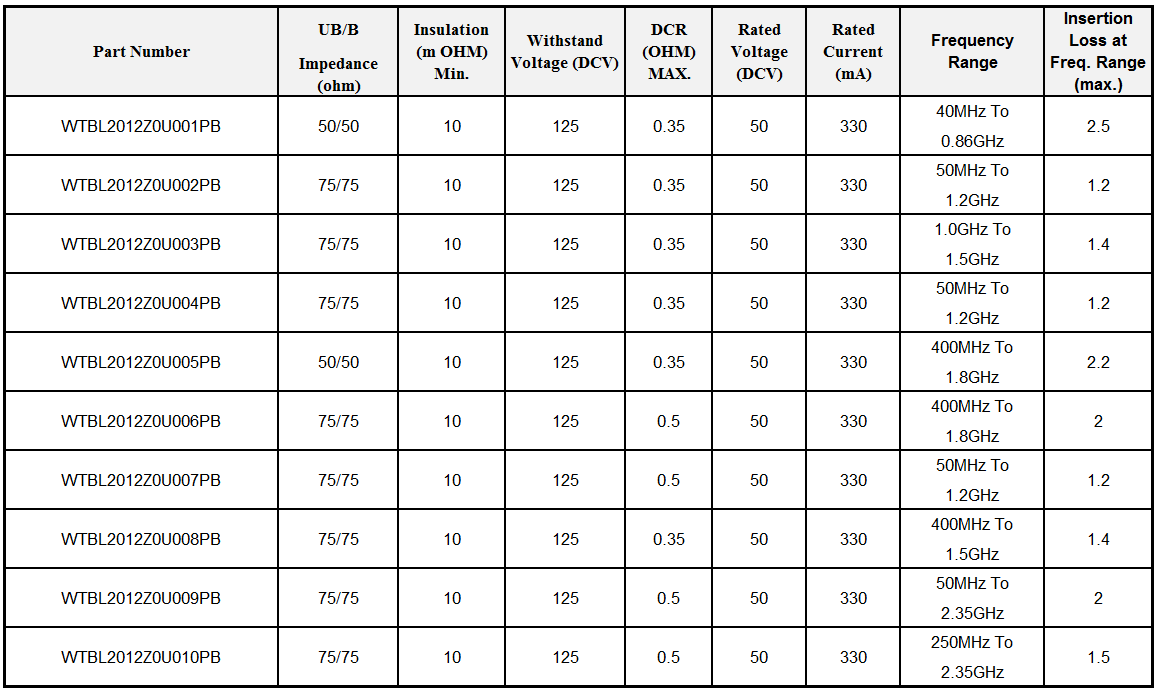

Electrical Characteristics



1.  Insertion Loss Tested by AgilentE5071C
2.  DCR Tested by Zentech502BC
3.  Operating Temperature Range -40℃ ~ +85℃    *MSL Level : 1
