Capacitors
Safety Certified S2/S3 MLCC
FEATURES
a. High reliability and stability.
b. Small size and high capacitance
c. RoHS compliant
d. Safety standard approval by
EN 60384-14 : 2013
IEC 60384-14 : 2013
UL 60384-14 (Ed 2.0)
e. Certificate number:
TUV: R50195920, TUV: R50381780
UL: E182369
f. HALOGEN compliant.
如無你需要規格，歡迎來信告知，後續會有專人幫您服務。

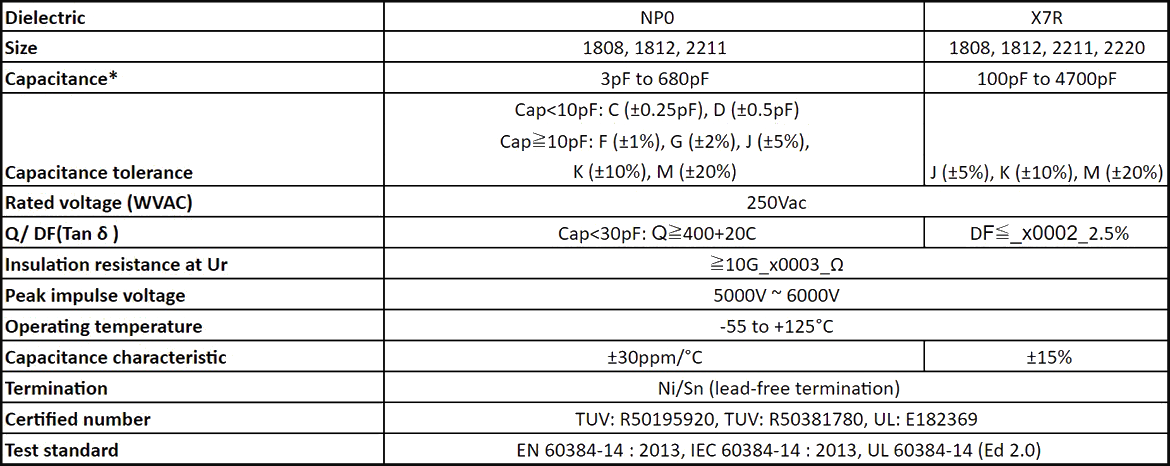

Safety Certified X1/Y2, S2 Series
* NP0: Apply 1.0±0.2Vrms, 1.0MHz±10% for Cap ≦_x0002_1000pF and 1.0±0.2Vrms, 1.0kHz±10% for Cap>1000pF, at 25°C ambient temperature.
* X7R: Apply 1.0±0.2Vrms, 1.0kHz±10%, at 25°C ambie nt temperature.
Safety Certified X2, S3 Series
* NP0: Apply 1.0±0.2Vrms, 1.0MHz±10% for Cap ≦_x0002_1000pF and 1.0±0.2Vrms, 1.0kHz±10% for Cap>1000pF, at 25°C ambient temperature.
* X7R: Apply 1.0±0.2Vrms, 1.0kHz±10%, at 25°C ambie nt temperature.
Safety Certified X1/Y2, S2 Series
* NP0: Apply 1.0±0.2Vrms, 1.0MHz±10% for Cap ≦_x0002_1000pF and 1.0±0.2Vrms, 1.0kHz±10% for Cap>1000pF, at 25°C ambient temperature.
* X7R: Apply 1.0±0.2Vrms, 1.0kHz±10%, at 25°C ambie nt temperature.
Safety Certified X2, S3 Series
* NP0: Apply 1.0±0.2Vrms, 1.0MHz±10% for Cap ≦_x0002_1000pF and 1.0±0.2Vrms, 1.0kHz±10% for Cap>1000pF, at 25°C ambient temperature.
* X7R: Apply 1.0±0.2Vrms, 1.0kHz±10%, at 25°C ambie nt temperature.
If there is no specification you need, please write to let us know, and there will be someone to help you in the future.
WTC_MLCC_Safety_Certified_S2 WTC_MLCC_Safety_Certified_S3
WTC_MLCC_Safety_Certified_S2 WTC_MLCC_Safety_Certified_S3
